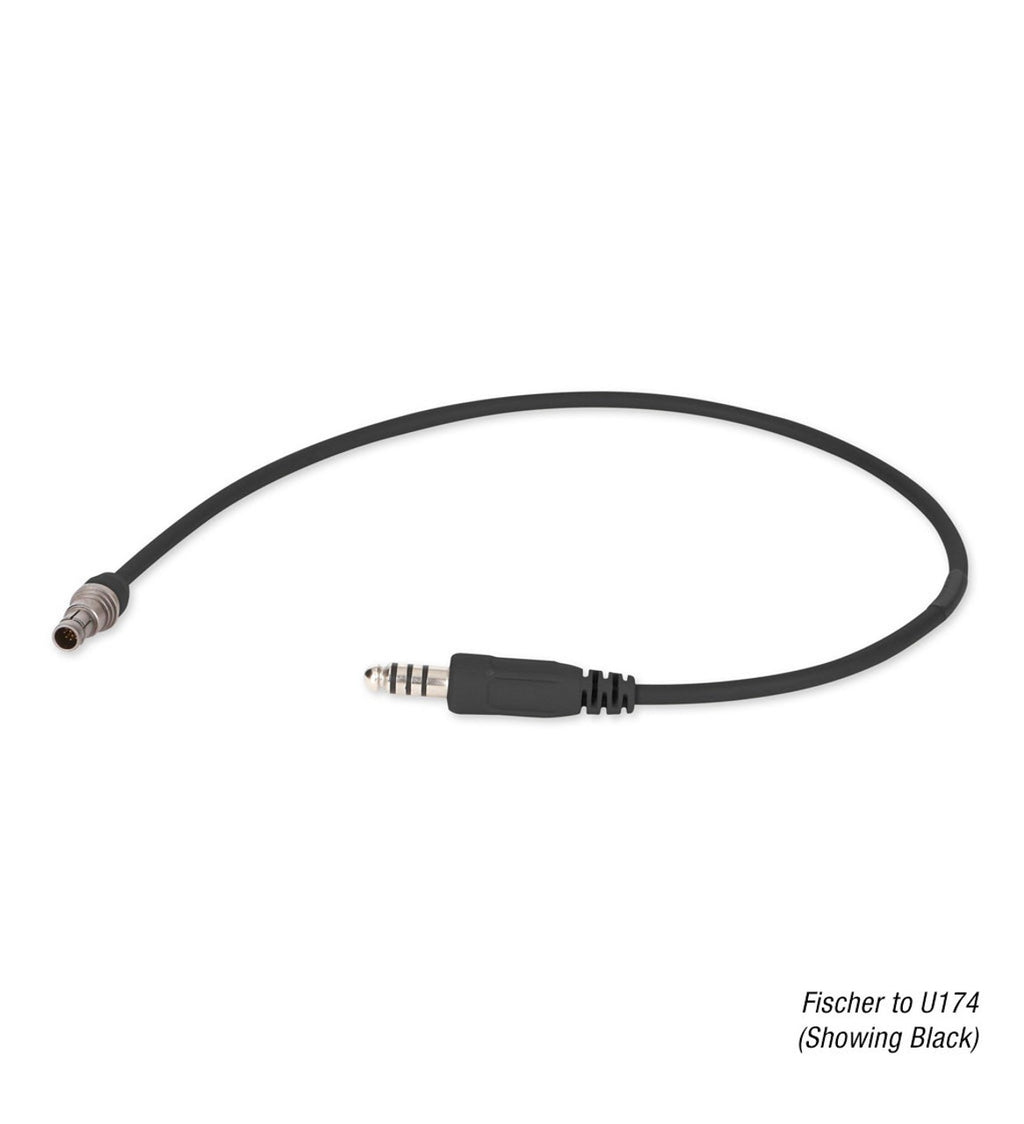

Ops-Core - AMP U174 Downlead Cable [Mono Binaural Downlead, 27", Black]

Cable for connecting AMP communication devices to PTT, Intercom and various types of radios with U174 plug.

• High quality, can protect water and dust well.

• Length 21 inches

• IPX7 standard waterproof feature

Connect your headphones to the radio you want to use.

Downlead radio cable for Ops Core AMP connectorized headset for immediate connection to standard PTT radios. Maximum cable length 27 inches. Cable is IPX7 rated.
Can prevent water penetration from immersing the device in water to a depth of 1 meter for a maximum period of 30 minutes.



Choosing a Mono Binaural Cable for Use with the Connectorized Ops Core AMP Headphones
This can be done in three main ways as follows:

1. Connect directly to PTT and a single radio.

When the earphone cable is plugged into the wearer's left earphone and installed with the PTT of Ops Core (using Amphenol model cable) or used with a PTT that supports U94 cable (using U-174 model cable) and the cable from the PTT is connected to the radio, the earphone will receive sound directly from a single radio. The sound will be heard on both sides of the earphone.

2. Connect directly to Dual PTT with two radios.

When the earphone cable is plugged into the wearer's left or right earphone and is installed with the Ops Core Dual PTT (using the Amphenol model cable) or used with the Dual PTT that supports the U94 cable (using the U-174 model cable) and the cable from the Dual PTT is connected to the radio, the earphone will receive sound directly from the radio. The sound will be heard on both sides of the earphone in the form of sound that will enter the ears simultaneously on both sides.

note !!



If you order the special edition Stereo cable and use it with Dual PTT, the cable will separate the radio sound into 2 sides, left/right (Radio 1 will be heard only in the left ear and Radio 2 will be heard only in the right ear.

3. Connect to 2 separate PTT sets to connect to two radios.

When plugging the earphone cables into the left earphones and the right earphones and installing them together
PTT of Ops Core (use Amphenol cable) or use with PTT that supports U94 cable (use U-174 cable) and connect the cable from PTT to both radios in a separate system. The headphones will receive sound.
Directly from the radio, the sound will be heard on both sides of the earphones , in the form of sound that will enter the ears simultaneously on both sides.

note !!



If you order a special version of the Monaural cable and use it with a separate PTT system, the cable will separate the radio sound into 2 sides, left/right (the radio and the first PTT set will hear only the left ear and the radio and the first PTT set will hear only the left ear). The second one can only be heard with the right ear)
